Romteck Grid Dallas Key

AU$35

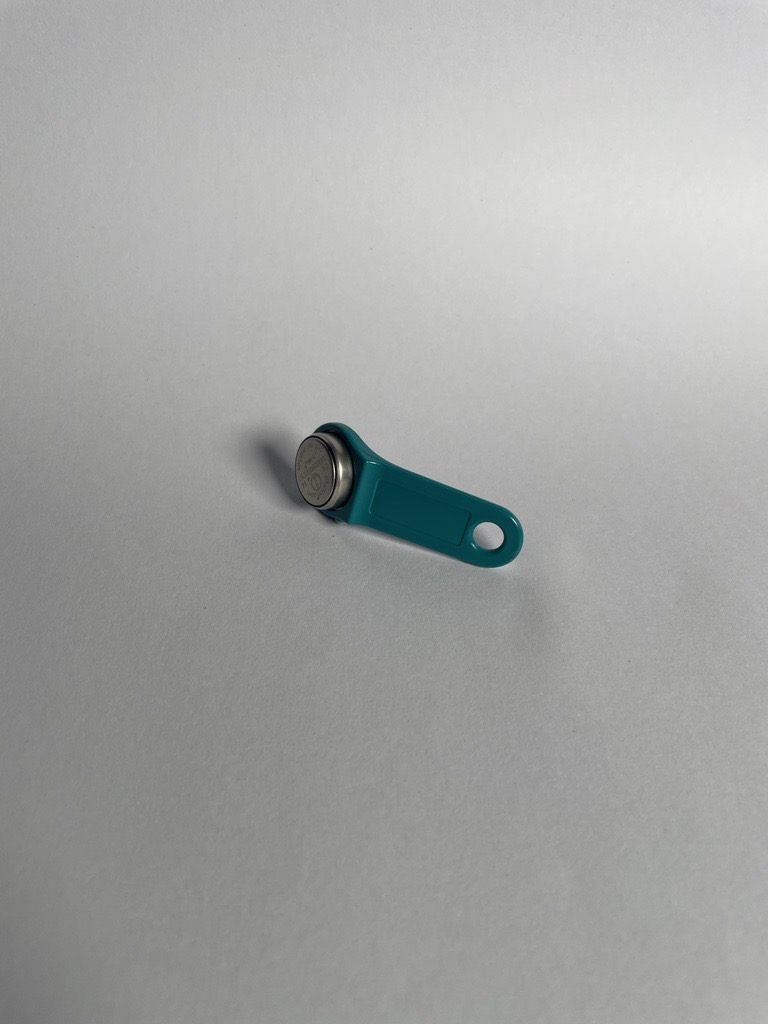

The Romteck Grid Non-Magnetic Dallas Key allows you to take the Romteck Grid Alarm Signalling Equipment (ASE) offline to allow for works on site without transmitting fire alarms through to Fire & Rescue. The Dallas Key will allow users to scroll through the menu on the ASE and select “Activate Test” which lasts either two or four hours (model dependent) before timing out.

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

Status

Press the F1 button to backlight the ASE display screen.
The ASE screen will show if one or more zones have an active fire alarm.

Test Mode

To place the ASE into test mode:

Activate commands by touching the ASE dallas key on the reader
Press the F1 button to step through the menu to “Activate Test”
Press the F2 button to execute the test command
Screen will show ASE in Test Mode.

Note Test Mode lasts 120 Minutes in some 3118 models and 240 minutes in 3119 models. The screen will display remaining time before Test Mode times out. The ASE sounds a warning tone for 10 minutes before Test Mode times out.

To command ASE from Test Mode back to Normal Mode use the Dallas key and step through the menu as above to ‘Turn Off Test” then use the F2 button to execute command.

Isolate Mode (ONLY IN 3118 MODEL)

Similar process as above but step through the menu to ‘Activate Isolate’. Note Isolate Mode will time out after 720 minutes (12 hours) and a tone will sound to warn Isolate has timed out.
