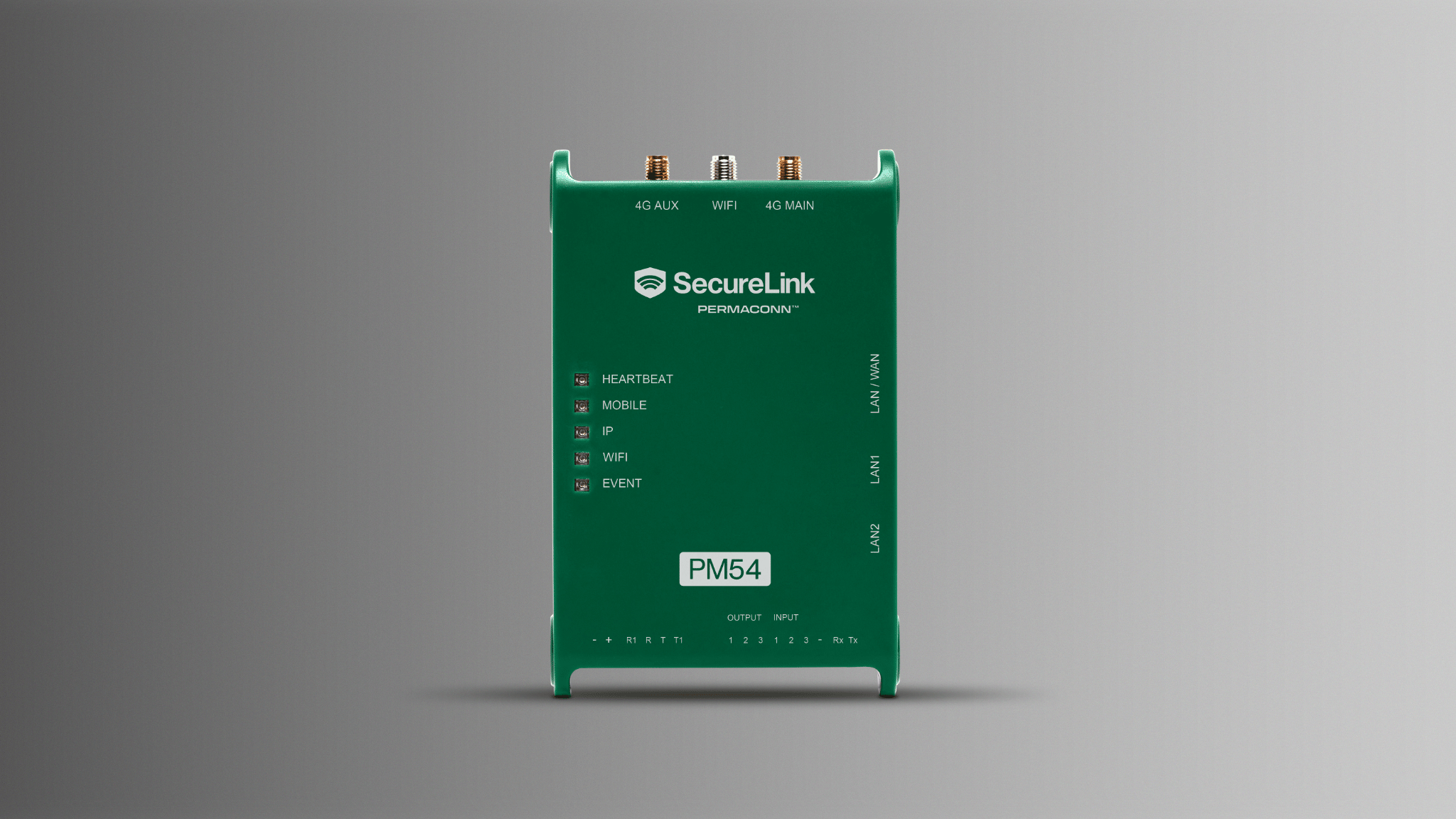

PM54 4G Alarm Communicator and Router

Select Variant
PM54 4G Alarm Communicator and Router

PM54 4G Alarm Communicator and Router

Available:
AU | NZ
Download
Spec Sheet

Enjoy all the benefits of the ultimate all-in-one solution for critical connectivity. The industry-leading PM54 combines alarm signalling, router capabilities and hotspot functionality, all powered directly from the alarm panel.

PM54 premium services includes Video Verification and Virtual Patrol at no extra cost.

Video

How to use the PM 54 4G

Video

key features
Securely connects network devices.

Streams high-definition CCTV in real time.

Enables seamless communications with high speed 4G connectivity.

Unrivalled reliability with 99.9% network uptime thanks to automatic 4G fallback if primary IP fails.

Fast and easy plug-and-play installation, set up and integration.

Remote monitoring and management through Atlas software from Permaconn.

On-the-go monitoring and management with the Pocket Secure mobile app from Permaconn.

Specifications

4G LTE-FDD:
Frequency: B1(2100) B3(1800) B5(850) B8(900) B28(700)Bandwidth: Max 10Mbps (DL) Max 5Mbps (UL)

3G HSPD+:
Frequency: B1(2100) B5(850) B8(900)Bandwidth: Max 21Mbps (DL) Max 5.76Mbps (UL)

Antenna:
2 antennas for Cellular (MIMO) + 1 for Wi-Fi

WIFI Capability:
Supports: IEEE 802.11b/g/nFrequency: 2.4GHz

Ethernet Specs:
Ports: 3 x RJ-45 portPhysical layer: 10/100Base-TData rate: 10/100 MbpsInterface: Auto MDI/MDIX

Routing/Failover:
IP pass-through; NAT, NAPT with IP Port Forwarding; Ethernet Bridging; DHCP; DNS Client and Server

Failover:
Automatic failover/failback to second cellular SIM, Wi-Fi or Ethernet.IP/Wi-Fi to SIM A and finally SIM B.

Management:
Remote configuration via Atlas web portal

Data Modem:
2400 baud modem for alarm panel remote upload / download

Serial Port:
High Speed RS232 interface for serial connection to alarm and access control panels

Auxiliary Input:
3 x 24Hr inputs state change detected every second EOL 3.3K

Dimensions:
3 x Open Collector outputs @ 50mA (max).Function control using Atlas web portal and/or Pocket Secure app

Auxiliary Output: 110mm (h) x 25mm (d) x 80mm (w)

Weight: 180 g
Power: 10 to 15V DC
Consumption: Idle 0.12A @13.8V DC
Transmitting: 0.35A @13.8V DC

Case Studies

Fairfield City Council

Connecting and integrating Fairfield City Council’s remote sites and access control systems with the PM54, Permaconn’s 3-in-1 communication solution.
